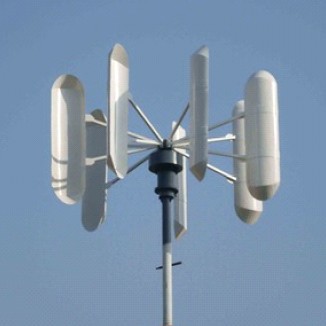

Zoom500W Vertical Axis Wind Turbine Generators
500W Vertical Axis Wind Turbine Feature:
1. The H type and C type design makes it easy to cleave the wind–the wind resistance is small.
2. Have multi- blades, the VAWT can catch much more wind power when start up，the cut in wind speed is low.
3. The H&C model & cambered blade design, the VAWT can get a lift force, which makes it lighter & lighter when running.
4. With the Zero-Motor (Magnetoelectric Machine), the VAWT can easy run up to the power rating.
5. When in fresh gale, the mechanical brake & or the Magnetic brake will protect the system.
6. More, the VAWT works quiet, & can be installed even on the top of the house.
500W Vertical Axis Wind Turbine Power Curve:
500W Vertical Axis Wind Turbine Specification:
| Numbers of blade(P): | 7pcs |
| Materials of blade: | FRP strengthened |
| Mill diameter | 112cm |
| Rated speed | 200 (rotate/minute) |
| Blade length | 180 cm |
| Startup wind speed | 2m/s |
| Rating wind speed | 8m/s |
| Working wind speed | 3-25 m/s |
| Safe wind speed | 40 m/s |
| Rating power | 500 w |
| Max.output power | 550 w |
| Rating out put | DC 24V |
| Governed speed style | Electromagnetic brake +Yawing |
| Tower height | 6 m |
| Generator weight | 129Kg |
| Wind energy ratio | 0.41% |
| Power generation of year | 1250kwh |
| Inverter power supply | Sine Wave |
| Supply Controller type | Off-grid |
| Supply Inverter type | Off-grid |
| Battery | 12v200AH X2pcs |
| Can supply power for | TV,Lighting,Electric fan,Charger |
