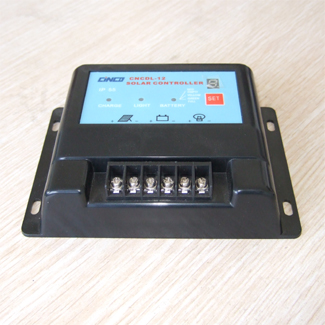

10A 12V | 24V Solar Lamp Regulator, 10Amp 12Vdc | 24Vdc Solar Light Controller

Posted by admin in News

10A 12V | 24V Solar Lamp Regulator, 10Amp 12Vdc | 24Vdc Solar light Controller

Waterproof Street Lamp Controller is fits for the solar lighting system that is automatically controlled below 280W for both lighting and solar panel.
Functions:
1. It can prevent the battery from over-charging and over-discharging.
2. It can prevent reverse charging (the battery charges the solar panel).
3. It can prevent reverse connection of the battery and solar panel.
4. It will start up the lighting system in the evening automatically according to the intensity of the light.
5. It will shut down the lighting system according to the time setting or shut down the lighting system automatically when it is dawn.
6. It has a LET indicator of the working condition of charging and discharging:
One piece of Charge Indicator LED (mark: Charge). When it is bright, the battery is charged strongly;
flickeringly means floating charge, no light means stop charging.

Notice:
One piece of Load Indicator LED (mark: Light). When it is bright, there is output and load can work
if LED goes out, means there isn’t output and the load cannot work.
Battery indicator:  red =under voltage   Green =full    Yellow =normal

Specification:
