20A 48V eTracer ET2415 MPPT Solar Charge Controller regulators

Posted by admin in News

20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators

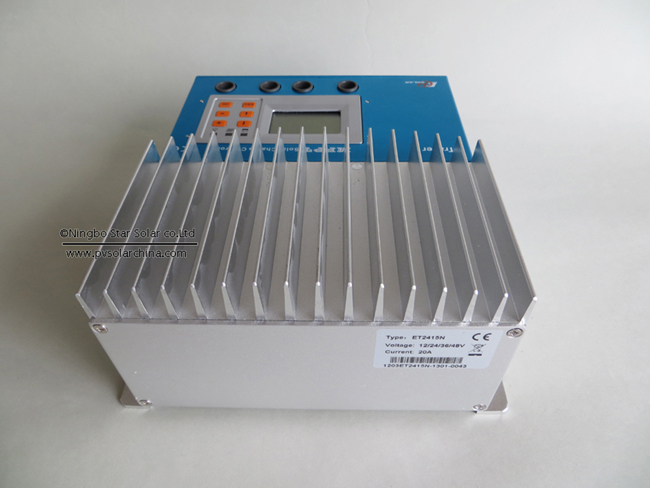

20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (1) 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (2) 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (3) 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (4) 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (5) 20A 48A eTracer ET6415 MPPT Solar Charge Controller regulators (6)



eTracer is an advanced Maximum Power Point Tracking MPPT controller for off-grid photovoltaic(PV) systems up to 3KW.The controller features as mart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point in all the weather condition.The controller provides higher efficiency up to 98% with lower power loss.Include up to 450 days data logging by connecting to Ethernet.

Features:
◆12/24/36/48V auto work
◆Advanced MPPT technology
◆Several seconds tracking speed
◆High Tracking efficiency of 99%
◆Multiphase synchronous rectification technology
◆Peak conversion efficiency of 98%
◆DSP&ARM processors architecture ensures high speed and performance
◆Multifunction LCD displays system data and status
◆Three kinds of communication ports :RS232, CAN BUS and Ethernet
◆Three stages charging optimizes battery performance
◆Software update by users



Specification:

Model No ET2415N
Norminal System Voltage 12V/24V36V/48V Auto work
Rated Battery Current 20A
Max.PV open circuit voltage 150V
Voltage Range 8-72V
Max.PV input power 260W 12V
520W 24V
780W 36V
1040W 48V
Self-consumption 1.4-2.2w
Grounding Negative
Ambient Temp.Range -25℃-+55℃
Storage Temp.Range -30℃-+85℃
Humidity Range 10%-90%N.C.
Enclosure IP20
Product Size 206x203x105mm
Mounting 150x193mm
Terminal 35mm²
Net Weight 2.6kgs

ET2415N MPPT Controller Specification eTracer MPPT Controller User Manual
