300W Vertical Axis Wind Turbine Generators

Posted by admin in News

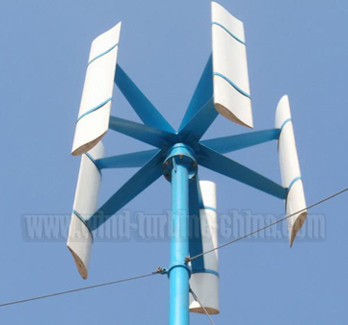

300W Vertical Axis Wind Turbine Generators



300W Vertical Axis Wind Turbine Feature:
1.  The H type and C type design makes it easy to cleave the wind–the wind resistance is small.
2.  Have multi- blades, the VAWT can catch much more wind power when start up,the cut in wind speed is low.
3.  The H&C model & cambered blade design, the VAWT can get a lift force, which makes it lighter & lighter when running.
4.  With the Zero-Motor (Magnetoelectric Machine), the VAWT can easy run up to the power rating.
5.  When in fresh gale, the mechanical brake & or the Magnetic brake will protect the system.
6.  More, the VAWT works quiet, & can be installed even on the top of the house.


300W Vertical Axis Wind Turbine Power Curve:

300W Vertical Axis Wind Turbine Power Curve


300W Vertical Axis Wind Turbine Specification:

Numbers of blade(P): 5pcs
Materials of blade: FRP strengthened
Mill diameter 160cm
Rated speed 200 (rotate/minute)
Blade length 112 cm
Startup wind speed 2m/s
Rating wind speed 8m/s
Working wind speed 3-25 m/s
Safe wind speed 40 m/s
Rating power 300 w
Max.output power 350 w
Rating out put DC 24V
Governed speed style Electromagnetic brake +Yawing
Tower height 6 m
Generator weight 102Kg
Wind energy ratio 0.41%
Power generation of year 750kwh
Inverter power supply Sine Wave
Supply Controller type Off-grid
Supply Inverter type Off-grid
Battery 12v100AH X2pcs
Can supply power for TV,Lighting,Electric fan,Charger

300W Vertical Axis Wind Turbine Generators
