3kW DC-AC inverter Circuit diagram

Posted by admin in News

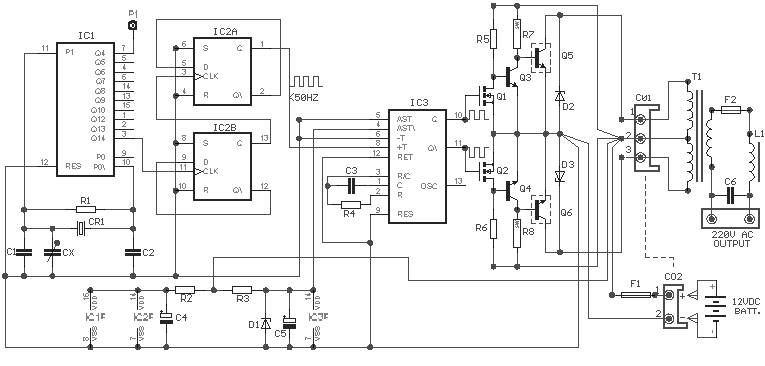

3kW DC-AC inverter Circuit diagram

3kW DC-AC inverter Circuit diagram

Parts list:
R1=10Mohms
R2=100ohms
R3=1.2Kohms
R4=560Kohms
R5-6=2.2Kohms
R7-8=56 ohms 5W
CX=22pF trimmed capacitor
C1-2=22pF ceramic
C3=8.2nF 100V MKT
c4=10uF 16V
C5=47uF 16V
C6=470nF 400V
D1=5V6 0.4W
D2-3=47V 1W
Q1-2=BS170
Q3-4=BD139
Q5-6=BD249
IC1=4060
IC2=4013
IC3=4047
CR1=3.2768 MHZ crystal
T1=220Vac/2X10V 2X2.2A
F1=5A Fuse
F2=0.25A Fuse
L1=1H smoothing choke

3000w inverter Circuit diagram Feature:
1. Advanced Energy Flow Management for lowest electricity consumption.
2. Reduced Component-Stress for more reliability & longer service life.
3. Harmonics Compensated Wave shape for higher appliance
