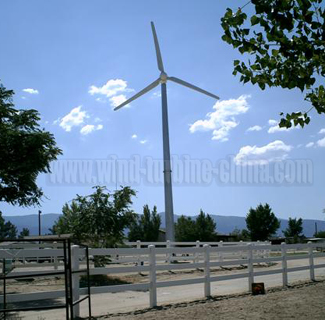

3000W Wind Turbine Generator Feature:
1. Magnetic saturation generator design, 20 years designed lifetime.
2. 3m/s start-up wind speed under Low–torque start-up technique.
3. Mechanical automatic yawing.
4. Matched controller with PWM constant voltage charging, electronic and manual brake, and numeral panel display.
5. special wind blades design，can reach max rotor power coefficient.
6. Supporting off grid and grid tie wind power system.
3000W Wind Turbine Generator Power Curve:
3000W Wind Turbine Generator Specification:
Rated Power (W)
3000W
Max Power (W)
4000W
Rated Voltage (DCV)
240V
Rated Current (A)
12.5A
Efficiency
85%
Output Voltage of Inverter
Single phase 110V-120V 60HZ or 220-240VAC/50HZ
Rotor Diameter(m)
4.5m
Start-up Wind Speed(m/s)
3m/s
Direction (Looking Downwind)
Counterclockwise
Location Relative to Tower
Downwind (Upwind Optional)
Rated Wind Speed(m/s)
10m/s
Security Wind Speed(m/s)
45m/s
Protection Mode
Dumpload
Rated Rotation Speed(r/m)
300r/m
Shell Material
Aluminum Alloy
Blade Material
GFRP
Blade Quantity
3pcs
Guy-Cable Tower
12m
Free-Standing Tower
12m
Hydraulic Tower
12m
Suggested Battery Capacity
12V100Ah 20 pcs
Control System
Controller and Pure Sine Wave Inverter
Standard Supply Scope
Wind Turbine including turbine, hub, controller, off
grid inverter, blades, tower, cables,accessories
