5000W Vertical Axis Wind Turbine Generators

Posted by admin in News

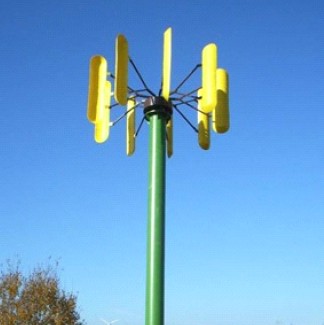

5000W Vertical Axis Wind Turbine Generators


5000W Vertical Axis Wind Turbine Feature:
1.  The H type and C type design makes it easy to cleave the wind–the wind resistance is small.
2.  Have multi- blades, the VAWT can catch much more wind power when start up,the cut in wind speed is low.
3.  The H&C model & cambered blade design, the VAWT can get a lift force, which makes it lighter & lighter when running.
4.  With the Zero-Motor (Magnetoelectric Machine), the VAWT can easy run up to the power rating.
5.  When in fresh gale, the mechanical brake & or the Magnetic brake will protect the system.
6.  More, the VAWT works quiet, & can be installed even on the top of the house.


5000W Vertical Axis Wind Turbine Power Curve:

5000W Vertical Axis Wind Turbine Power Curve



5000W Vertical Axis Wind Turbine Specification:

Numbers of blade(P): 9pcs
Materials of blade: FRP strengthened
Mill diameter 350cm
Rated speed 50 (rotate/minute)
Blade length 183 cm
Startup wind speed 3m/s
Rating wind speed 11m/s
Working wind speed 3-30 m/s
Safe wind speed 50 m/s
Rating power 5000 w
Max.output power 6500 w
Rating out put DC 120V  |  240V
Governed speed style Electromagnetic brake +Yawing
Tower height 9 m
Generator weight 420Kg
Wind energy ratio 0.41%
Power generation of year 12500kwh
Inverter power supply Sine Wave
Supply Controller type Off-grid /On-grid
Supply Inverter type Off-grid /On-grid
Battery 12v200AH X20pcs
Can supply power for TV,Lighting,icebox,water pump, Electric fan,Charger

5000W Vertical Axis Wind Turbine Generators
