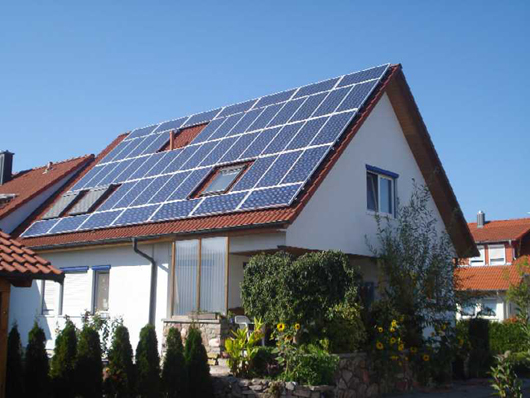

Grid Tied Solar Power System

Posted by admin in News

Grid Tied Solar System, China Grid Tie Kit

What is the Grid Tied Solar System?

Grid-tied solar systems produce energy, transmitting this power to your utility company’s electrical power grid. Essentially, this implies the utility company will be paying out you to generate electricity for them, because the power you have produced counts against the energy your property or company utilizes.

Your own solar panels may generate DC (Direct Current) electrical energy. This kind of electrical energy will be run through an inverter to generate Alternating current (Alternating Current) energy. This electricity is then run into your Alternating current electrical power panel, which feeds energy to your utility companies power grid. In case your solar energy array generated sufficient electrical power, your utility meter would certainly begin to run backward!



Grid Tied Solar System components

solar panels You will need solar panels to get the solar energy and transform this to DC power. The quantity and type of solar panels will probably determine the amount of power you’ll be able to generate, as will your current geographic position.

Combiner Box This box collects each of the Solar Panel connections.

DC Breaker Box Your array’s breaker safely shuts your solar power system on the moment’s notice, permitting risk-free maintenance, repair, and inspection.

Grid Tied Inverter Inverters get Direct Current power and transform it to household (Alternating current) power.

Grid Disconnect A grid disconnect allows you to stop the flow of electricity between your solar power system and your electrical system. This provides for the safe maintenance of electrical and utility systems.



Ⅰ: Solar Panel Monocrystalline TUV UL CE ICE Approved

Model No Max
Power(W)
Solar
Cell
Number of
Solar Cell
Dimension(mm) Max
Current(A)
Max
Voltage(V)
Short
Circuit
Current(A)
Open Circuit
Voltage(A)
Weight
(kg)
SSA155W-36M 155W 5″ 125 6×12 1580x808x40 4.47A 34.7V 4.78A 43.77V 15
SSA160W-36M 160W 5″ 125 6×12 1580x808x40 4.53A 35.28V 4.85A 43.84V 15
SSA165W-36M 165W 5″ 125 6×12 1580x808x40 4.6A 35.85V 4.92A 43.99V 15
SSA170W-36M 170W 5″ 125 6×12 1580x808x40 4.64A 36.57V 4.97A 44.13V 15
SSA175W-36M 175W 5″ 125 6×12 1580x808x40 4.70A 37.29V 5.02A 44.28V 15
SSA180W-36M 180W 5″ 125 6×12 1580x808x40 4.77A 37.75V 5.1A 44.71V 15
SSA185W-36M 185W 5″ 125 6×12 1580x808x40 4.87A 38.02V 5.21A 45V 15
SSA190W-36M 190W 5″ 125 6×12 1580x808x40 4.98A 38.16V 5.33A 44.93V 15
SSA195W-36M 195W 5″ 125 6×12 1580x808x40 5.09A 38.3V 5.45A 45V 15
SSA195W-40M 195W 5″ 125 8X10 1304X1056X40 4.7A 41.44V 5.03A 49.2V 16.3
SSA200W-40M 200W 5″ 125 8X10 1304X1056X40 4.77A 41.95V 5.1A 49.68V 16.3
SSA205W-40M 205W 5″ 125 8X10 1304X1056X40 4.85A 42.24V 5.19A 49.84V 16.3
SSA210W-40M 210W 5″ 125 8X10 1304X1056X40 4.93A 42.56V 5.28A 50V 16.3
SSA200W-48M 200W 5″ 125 8X12 1600X1056X40 4.43A 45.63V 4.68A 57.6V 19.5
SSA205W-48M 205W 5″ 125 8X12 1600X1056X40 4.49A 46.27V 4.74A 58.36V 19.5
SSA210W-48M 210W 5″ 125 8X12 1600X1056X40 4.5A 46.65V 4.81A 58.41V 19.5
SSA215W-48M 215W 5″ 125 8X12 1600X1056X40 4.55A 47.23V 4.87A 58.51V 19.5
SSA220W-48M 220W 5″ 125 8X12 1600X1056X40 4.6A 47.8V 4.92A 58.65V 19.5
SSA225W-48M 225W 5″ 125 8X12 1600X1056X40 4.61A 48.76V 4.93A 58.84V 19.5
SSA230W-48M 230W 5″ 125 8X12 1600X1056X40 4.67A 49.15V 5A 58.94V 19.5
SSA235W-48M 235W 5″ 125 8X12 1600X1056X40 4.72A 49.72V 5.05A 59.04V 19.5
SSA240W-48M 240W 5″ 125 8X12 1600X1056X40 4.77A 50.3V 5.1A 59.61V 19.5
SSA245W-48M 245W 5″ 125 8X12 1600X1056X40 4.84A 50.54V 5.18A 59.76V 19.5
SSA250W-48M 250W 5″ 125 8X12 1600X1056X40 4.92A 50.78V 5.26A 59.9V 19.5
SSA255W-48M 255W 5″ 125 8X12 1600X1056X40 5A 50.98V 5.35A 59.95V 19.5
SSA260W-48M 260W 5″ 125 8X12 1600X1056X40 5.07A 51.25V 5.43A 60.09V 19.5
SSA190W-27MD 190W 6″ 156 6X9 1485X990X40 7.24A 26.23V 7.75A 32.86V 17
SSA195W-27MD 195W 6″ 156 6X9 1485X990X40 7.34A 26.56V 7.86A 32.91V 17
SSA200W-27MD 200W 6″ 156 6X9 1485X990X40 7.43A 26.9V 7.96A 33V 17
SSA205W-27MD 205W 6″ 156 6X9 1485X990X40 7.5A 27.34V 8.02A 33.08V 17
SSA210W-27MD 210W 6″ 156 6X9 1485X990X40 7.58A 27.69V 8.11A 33.16V 17
SSA215W-27MD 215W 6″ 156 6X9 1485X990X40 7.65A 28.12V 8.18A 33.39V 17
SSA220W-27MD 22W 6″ 156 6X9 1485X990X40 7.77A 28.32V 8.31A 33.55V 17
SSA225W-27MD 225W 6″ 156 6X9 1485X990X40 7.9A 28.49V 8.45A 33.63V 17
SSA220W-30MD 220W 6″ 156 6X10 1640X990X40 7.4A 29.74V 7.92A 36.62V 18.6
SSA225W-30MD 225W 6″ 156 6X10 1640X990X40 7.46A 30.17V 7.98A 36.71V 18.6
SSA230W-30MD 230W 6″ 156 6X10 1640X990X40 7.53A 30.53V 8.06A 36.79V 18.6
SSA235W-30MD 235W 6″ 156 6X10 1640X990X40 7.6A 30.94V 8.13A 36.88V 18.6
SSA240W-30MD 240W 6″ 156 6X10 1640X990X40 7.66A 31.32V 8.2A 37.2V 18.6
SSA245W-30MD 245W 6″ 156 6X10 1640X990X40 7.78A 31.49V 8.32A 37.28V 18.6
SSA250W-30MD 250W 6″ 156 6X10 1640X990X40 7.9A 31.65V 8.45A 37.37V 18.6
SSA250W-36MD 250W 6″ 156 6X12 1960X990X46 7.19A 34.78V 7.69A 43.78V 22.4
SSA260W-36MD 260W 6″ 156 6X12 1960X990X46 7.33A 35.48V 7.84A 43.88V 22.4
SSA270W-36MD 270W 6″ 156 6X12 1960X990X46 7.46A 36.22V 7.98A 44.05V 22.4
SSA275W-36MD 275W 6″ 156 6X12 1960X990X46 7.52A 36.57V 8.05A 44.13V 22.4
SSA280W-36MD 280W 6″ 156 6X12 1960X990X46 7.58A 36.94V 8.11A 44.24V 22.4
SSA290W-36MD 290W 6″ 156 6X12 1960X990X46 7.72A 37.55V 8.26A 44.6V 22.4
SSA300W-36MD 300W 6″ 156 6X12 1960X990X46 7.92A 37.87V 8.48A 44.78V 22.4



Solar panel Polycrystalline TUV UL CE ICE Approved

Model No Max
Power(W)
Solar
Cell
Number of
Solar Cell
Dimension(mm) Max
Current(A)
Max
Voltage(V)
Short
Circuit
Current(A)
Open Circuit
Voltage(A)
Weight
(kg)
SSB155W-24P 155W 6″ 156 6X8 1330X990X40 6.78A 22.85V 7.26A 28.85V 16.4
SSB160W-24P 160W 6″ 156 6X8 1330X990X40 6.86A 23.32V 7.34A 28.89V 16.4
SSB165W-24P 165W 6″ 156 6X8 1330X990X40 6.98A 23.61V 7.47A 28.94V 16.4
SSB170W-24P 170W 6″ 156 6X8 1330X990X40 7.08A 24V 7.57A 28.99V 16.4
SSB175W-24P 175W 6″ 156 6X8 1330X990X40 7.29A 24V 7.8A 28.99V 16.4
SSB180W-24P 180W 6″ 156 6X8 1330X990X40 7.44A 24.19V 7.96A 29.09V 16.4
SSB185W-24P 185W 6″ 156 6X8 1330X990X40 7.61A 24.29V 8.15A 29.13V 16.4
SSB190W-24P 190W 6″ 156 6X8 1330X990X40 7.76A 24.48V 8.3A 29.23V 16.4
SSB180W-27P 180W 6″ 156 6X9 1485X990X40 6.85A 26.24V 7.33A 32.5V 17
SSB185W-27P 185W 6″ 156 6X9 1485X990X40 6.96A 26.56V 7.45A 32.56V 17
SSB190W-27P 190W 6″ 156 6X9 1485X990X40 7.15A 26.56V 7.65A 32.56V 17
SSB195W-27P 195W 6″ 156 6X9 1485X990X40 7.22A 27V 7.72A 32.62V 17
SSB200W-27P 200W 6″ 156 6X9 1485X990X40 7.38A 27.11V 7.89A 32.67V 17
SSB205W-27P 205W 6″ 156 6X9 1485X990X40 7.5A 27.32V 8.02A 32.77V 17
SSB200W-30P 200W 6″ 156 6X10 1640X990X40 6.85A 29.16V 7.33A 36.12V 18.6
SSB205W-30P 205W 6″ 156 6X10 1640X990X40 6.94A 29.52V 7.43A 36.18V 18.6
SSB210W-30P 210W 6″ 156 6X10 1640X990X40 7.11A 29.52V 7.61A 36.18V 18.6
SSB215W-30P 215W 6″ 156 6X10 1640X990X40 7.16A 30V 7.66A 36.24V 18.6
SSB220W-30P 220W 6″ 156 6X10 1640X990X40 7.31A 30.12V 7.81A 36.3V 18.6
SSB225W-30P 225W 6″ 156 6X10 1640X990X40 7.46A 30.18V 7.97A 36.33V 18.6
SSB230W-30P 230W 6″ 156 6X10 1640X990X40 7.58A 30.36V 8.11A 36.42V 18.6
SSB235W-30P 235W 6″ 156 6X10 1640X990X40 7.68A 30.6V 8.22A 36.54V 18.6
SSB240W-30P 240W 6″ 156 6X10 1640X990X40 7.81A 30.72V 8.36A 36.6V 18.6
SSB230W-33P 230W 6″ 156 6X11 1800X990X40 7.08A 32.47V 7.57A 39.79V 20.6
SSB235W-33P 235W 6″ 156 6X11 1800X990X40 7.12A 33V 7.69A 39.86V 20.6
SSB240W-33P 240W 6″ 156 6X11 1800X990X40 7.27A 33V 7.78A 39.86V 20.6
SSB245W-33P 245W 6″ 156 6X11 1800X990X40 7.39A 33.13V 7.91A 39.93V 20.6
SSB240W-36P 240W 6″ 156 6X12 1960X990X46 6.89A 34.85V 7.37A 43.23V 22.5
SSB245W-36P 245W 6″ 156 6X12 1960X990X46 7A 34.99V 7.49A 43.34V 22.5
SSB250W-36P 250W 6″ 156 6X12 1960X990X46 7.05A 35.42V 7.55A 43.41V 22.5
SSB255W-36P 255W 6″ 156 6X12 1960X990X46 7.08A 36V 7.57A 43.48V 22.5
SSB260W-36P 260W 6″ 156 6X12 1960X990X46 7.22A 36V 7.72A 43.48V 22.5
SSB265W-36P 265W 6″ 156 6X12 1960X990X46 7.32A 36.2V 7.32A 44.02V 22.5
SSB270W-36P 270W 6″ 156 6X12 1960X990X46 7.42A 36.4V 7.94A 44.17V 22.5
SSB275W-36P 275W 6″ 156 6X12 1960X990X46 7.49A 36.72V 8.01A 44.24V 22.5
SSB280W-36P 280W 6″ 156 6X12 1960X990X46 7.57A 36.98V 8.1A 44.31V 22.5
SSB290W-36P 290W 6″ 156 6X12 1960X990X46 7.86A 36.89V 8.41A 43.99A 22.5
SSB300W-36P 300W 6″ 156 6X12 1960X990X46 7.86A 36.89V 8.41A 43.99A 22.5



Ⅱ : Grid Tied Inverter

Model No Max. PV power Max. DC voltage MPPT voltage range Max. efficiency Dimensions (mm)
(W / H / D)
Weight(kg)
SolarRiver1100TL 1100W 550 Vdc 120~500 96.60% 285X385X145 16
SolarRiver1600TL 1600W 550 Vdc 180~426 96.80% 285X385X145 16
SolarRiver1700TL 1700W 550 Vdc 180~500 96.80% 332X450X161 17.1
SolarRiver2300TL 2300W 550 Vdc 200~500 96.80% 332X450X161 17.5
SolarRiver3000TL 3000W 550 Vdc 210~500 97% 332X450X161 17.9
SolarRiver3300TL 3000W 550 Vdc 200~500 97.40% 329X443X180 18.9
SolarRiver4400TL 4400W 550 Vdc 200~500 97.60% 329X443X180 19.2
SolarRiver5200TL 5200W 550 Vdc 200~500 97.60% 329X443X180 19.4
SolarLake10000TL 10000W 1000 Vdc 320~800 97.90% 520X756X230 50
SolarLake12000TL 12000W 1000 Vdc 320~800 97.90% 520X756X230 50
SolarLake15000TL 15000W 1000 Vdc 320~800 98.00% 520X756X230 50
SolarLake17000TL 17000W 1000 Vdc 320~800 98.00% 520X756X230 50



Ⅲ :Root Solar panel Mounting

solar-panel-mounting-2 Solar root mounting

Specification:

  • Design Wind Load: 55m/s or 200km/hour
  • Design Snow Load: 1.5kn/m2
  • Steel structure: Anodized Aluminum + Stainless Steel
  • reference standard: AS/NZ 1170.2
  • Installation site:Pitch root
  • Guarantee: Ten years guarantee on parts



Solar root mounting-2Solar root mounting-3

1.We use L-feet for tin roof and hook for tile-roof to connect the rack structure with the rafters of the roof.
2.At the installation site we do not require welding, and even have no need to drill a hole, just using the electrical locks and wrenches and other simple tools to complete the installation. This simplify the traditional installation procedure, we will manage to preassemble the screws and nuts before shipment to reduce on-site installation procedures and labor intensity. Eliminate the differences in degree of on-site professional installation and degree of impact on the quality of the roof support system.
3.Utilization of the anodized aluminum, stainless steel, anti-aging UV process to ensure the longer life span of our solar technology and solar tracking.



Grid Tied Solar System Project

Grid Tied Solar System1 Grid Tied Solar System4


Grid Tied Solar System2 Grid Tied Solar System5



Grid Tied Solar System3 Grid Tied Solar System6



Grid Tied Solar System FAQs:

How Do Gird Tied Solar System Work?
What is the advantage of grid Tied Solar System?
How to Wire Grid Tied Solar System?
How to Size Grid Tied Solar System?
Question of 3kW Grid Tied Solar System

Grid Tied Solar System Installation
