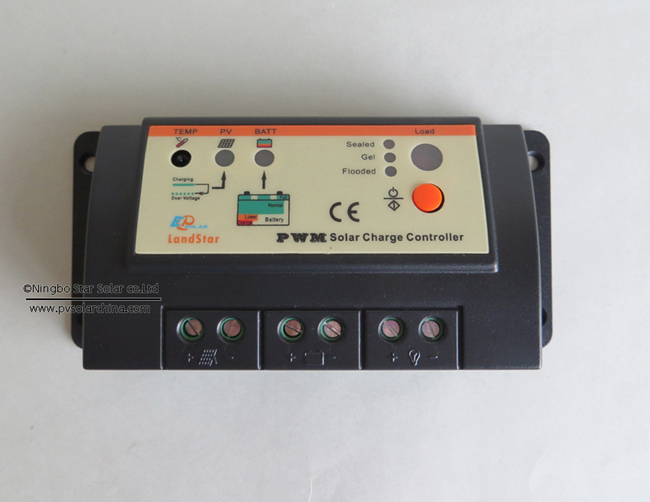

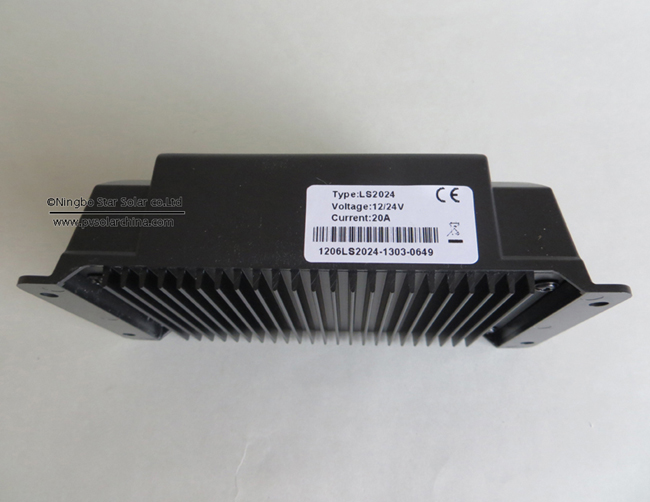

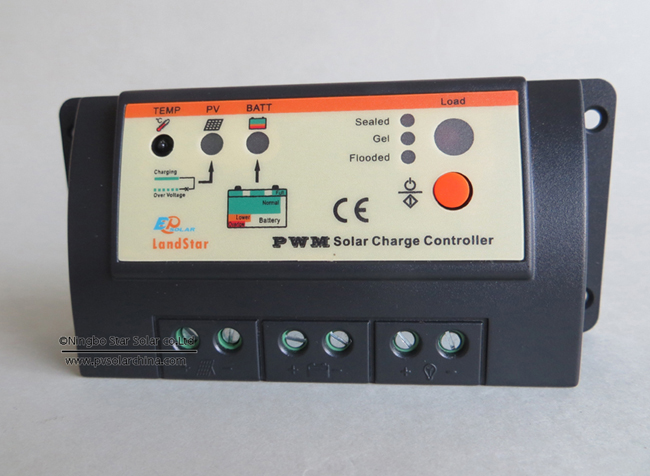

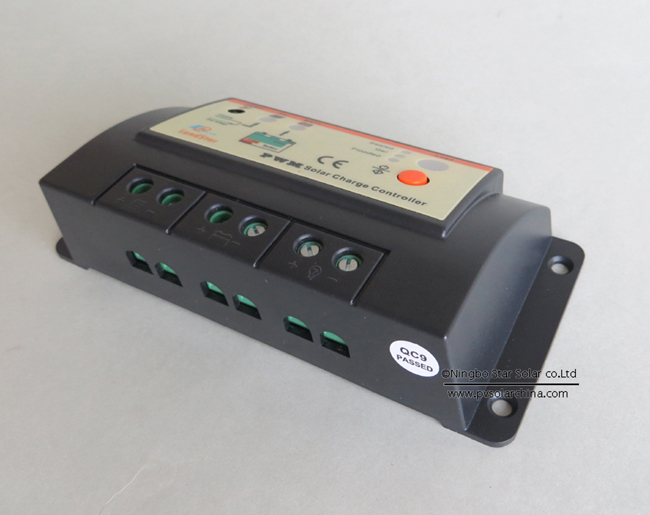

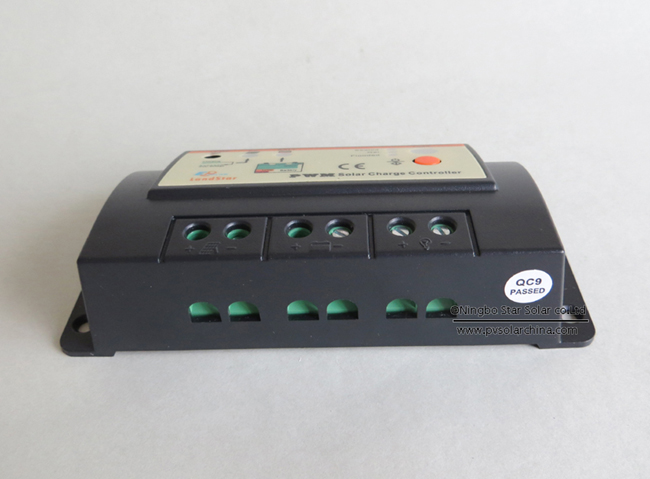

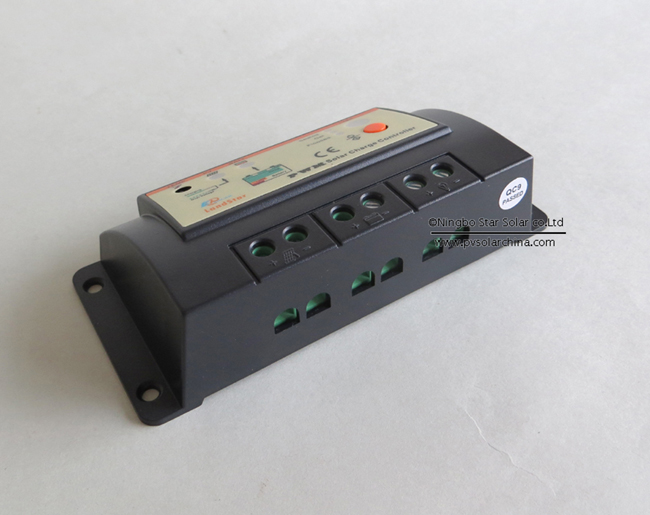

LS2024 Landstar 20A 12V 24V Solar Charge Controller
LandStar series solar charge controller adopts the most advanced digital technique and operates automatically.The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.
Feature:
·12/24V automatic recognition
·High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance.
·Use MOSFET as electronic switch, without any mechanical switch
·Gel, Sealed and Flooded battery type option.
·Adopt temperature compensation, correct the charging and discharging parameters automatically and improve the battery lifetime.
·Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
·Reverse protection: any combination of solar module and battery.
Specification:
Model
LS2024
Rated Current
20A
System Voltage
12/24V auto work
Over Load Protection
1.25 times of rated current for 60 seconds,
or 1.5 times for 5 seconds
Short Circuit Protection
3.5 times of rated current
Self- consumption
Max.6mA
Working Temperature
-35°C to +55°C industrial
Equalize Charging Voltage
14.6V;x2/24V
Boost Charging Voltage
14.4V;x2/24V
Float Charging Voltage
13.8V;x2/24V
Boost Reconnect Charging Voltage
13.2V;x2/24V
Temperature Compensation
-30mV/°C/12V
Under Voltage Warning Voltage
12.0V;x2/24V
Low Voltage Disconnect Voltage
11.1V;x2/24V
Low Voltage Reconnect Voltage
12.6V;x2/24V
Terminals
10 mm2
Enclosure
IP30
Compensation Coefficient
Description
Parameter
Temperature Compensation Coefficient(TEMPCO)*
-30mV/℃/12V(25℃ ref)
* Compensation of equalize, boost, float and boost reconnect voltage
