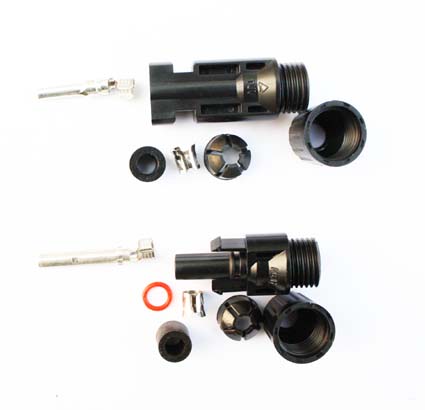

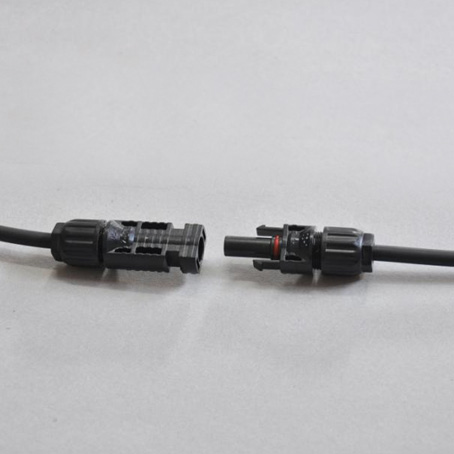

MC4 Solar Connector, MC4 Solar Panel Connector

MC4 Solar Connector Application
· Compatible MC 3 solar connector.
· Easy and reliable connection of the solar cables to the photovoltaic system (solar panels, converters)
Characteristics
· Integrated twist locking
· Robust
· Temperature range -40°C to +110°C
· High current capacity
· Constant low transition resistance
· High mechanical resistance
· Easy assembly
· UV- and ozone resistant
· Protection mode IP65 in mated condition

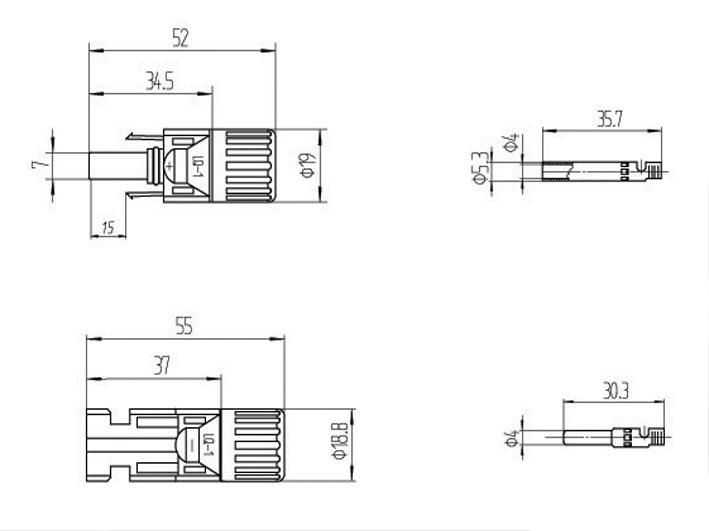

Connector diameter  4 mm
Compatible cable cross sections  Solar cable 4.0 mm² and 6.0 mm²
Max. system voltage  1000 VDC
Current carrying capacity  38A
Material  TPE/PA
Protection type  II
Protection mode  IP 65 in mated condition

MC4 Solar Connector Package:
Male: 100 sets / PE bag. 10 bag / carton
Female : 100 sets / PE bag. 10 bag / carton .
Measure : 380mm x 290mm x 470mm
Net weight : 34 Kg
Gross weight : 35.5 Kg.
