Home » News » 10A MPPT Solar Regulator, 10AMP MPPT Solar Charge Controller
1月02

10A MPPT Solar Regulator, 10AMP MPPT Solar Charge Controller

Posted by admin in News

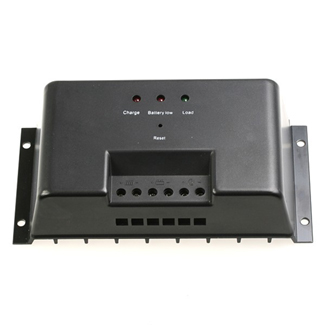

10A MPPT Solar Regulator, 10AMP MPPT Solar Charge Controller



10A MPPT Solar Regulator can regulate the 240W solar panels.

Package include:
1.1X MPPT 10A solar charge contrller
2.1X USERS` Manual

Feature: The most outstanding feature of Maximum Power Point Tracking controller is intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30% electrical power using efficiency from solar panel.

Function:
10A MPPT Solar Regulator is not only have above mentioned special function, at the same time including completely Protecting and Controlling functions: Overcharge protectionOver-discharge protectionBattery Reverse Current ProtectionOverloading ProtectionShort Circuit ProtectionReverse Polarity Connection Protection

 MPPT Solar Regulator Specification

Model SSP-10A
Rated Voltage DC: 12V/24V
Max Current 10A
Zero Loaded Losses ≤45mA/12V/24V
Full Charge Cut 14V/12V 28V/24V
Low Voltage Cut 10.5V/12V 21V/24V
Supply Resume Voltage 12.6V/12V 25.2V/24V
Temp Conpensation -3mV/ceII
Efficiency 95%~97%
Min. Wire Size 1~2A/ mm2
MPPT Efficiency Increase 10~30﹪
