20KW Wind Turbine, 20KW Wind Turbine Generator

Posted by admin in News

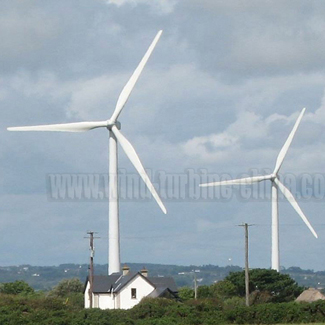

20KW Wind Turbine, 20KW Wind Turbine Generator


20KW Wind Turbine Generator Feature:
1. Magnetic saturation generator design, 20 years designed lifetime.
2. 3m/s start-up wind speed under Low–torque start-up technique.
3. Mechanical automatic yawing.
4. Matched controller with PWM constant voltage charging, electronic and manual brake, and numeral panel display.
5. special wind blades design,can reach max rotor power coefficient.
6. Supporting off grid and grid tie wind power system.


20KW Wind Turbine Generator Power Curve:
20kW Wind Generator Power Curve


20KW Wind Turbine Generator Specification:

Rated Power (W) 20000W
Max Power (W) 25000W
Rated Voltage (DCV) 240V
Rated Current (A) 83.3A
Efficiency 85%
Output Voltage of Inverter Single phase 110V-120V 60HZ or 220-240VAC/50HZ
Rotor Diameter(m) 10M
Start-up Wind Speed(m/s) 3m/s
Direction (Looking Downwind) Clockwise
Location Relative to Tower Upwind
Rated Wind Speed(m/s) 12m/s
Security Wind Speed(m/s) 50m/s
Protection Mode Yaw, Hydraulic brake, Dumpload
Rated Rotation Speed(r/m) 90r/m
Shell Material Aluminum Alloy
Blade Material GFRP
Turbine angle 6°
Annual yield(kwh) 24000kwh
Yaw mode Manual/Auto
Blade Quantity 3pcs
Free-Standing Tower 18m
Hydraulic Tower 18m
Suggested Battery Capacity 12V200Ah 60 pcs
Control System Controller and Pure Sine Wave Inverter(3 phase for optional)
Standard Supply Scope Complete Wind Turbine System including turbine, hub, controller,
off grid inverter, blades, tower, cables and other accessories
Turbine Life Span Around 20 years under normal wind conditions

20KW Wind Turbine Generator
