Horizontal axis | Vertical axis Wind Turbine

Posted by admin in News

Wind Generator, China Wind Generator

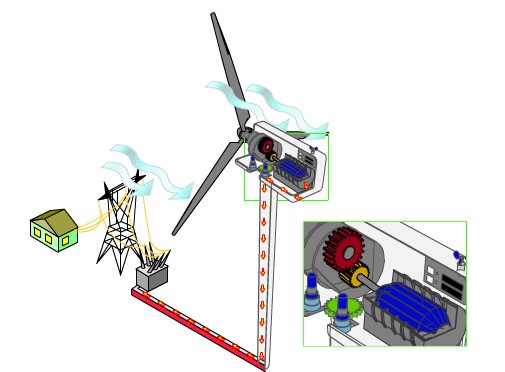

How do Wind Generator Work?

How do Wind Turbine Generator WorkWind is a form of solar energy. Winds are caused by the uneven heating of the atmosphere by the sun, the irregularities of the Photo of a string of large, three-bladed wind turbines next to an old barn on a farm.Many wind farms have sprung up in the Midwest in recent years, generating power for utilities. Farmers benefit by receiving land lease payments from wind energy project developers.

earth’s surface, and rotation of the earth. Wind flow patterns are modified by the earth’s terrain, bodies of water, and vegetation. Humans use this wind flow, or motion energy, for many purposes: sailing, flying a kite, and even generating electricity.

The terms wind energy or wind power describe the process by which the wind is used to generate mechanical power or electricity. Wind turbines convert the kinetic energy in the wind into mechanical power. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.

So how do wind turbines make electricity? Simply stated, a wind turbine works the opposite of a fan. Instead of using electricity to make wind, like a fan, wind turbines use wind to make electricity. The wind turns the blades, which spin a shaft, which connects to a generator and makes electricity. Take a look inside a wind turbine to see the various parts. View the wind turbine animation to see how a wind turbine works.

This aerial view of a wind power plant shows how a group of wind turbines can make electricity for the utility grid. The electricity is sent through transmission and distribution lines to homes, businesses, schools, and so on.

horizontal-axis wind turbine and vertical-axis wind turbine:

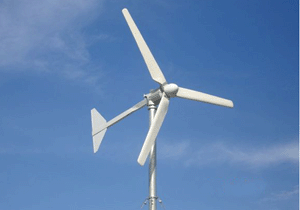

Horizontal Axis Wind Turbine (HAWT)                  Vertical axis wind turbine(VAWT)

Horizontal axis wind turbine(HAWT)                                                                  Vertical axis wind turbine(VAWT)

Modern wind turbines fall into two basic groups: the horizontal-axis variety, as shown in the photo, and the vertical-axis design, like the eggbeater-style Darrieus model, named after its French inventor.

Horizontal-axis wind turbines typically either have two or three blades. These three-bladed wind turbines are operated “upwind,” with the blades facing into the wind.



Horizontal axis wind Generator 300W to 30KW



Model No Rated Power Peak Power Work Voltage Application
Angel 200W 200W 300Watt 12V/24V Hybrid Wind Solar System
Angel 300W 300W 450Watt 12V/24V Hybrid Wind Solar System
Angel 400W 400W 500Watt 12V/24V Hybrid Wind Solar System
Skywing-M300 300W 400Watt 12V/24V Wind Turbine System
Skywing-S300 300W 400Watt 24V/48V Hybrid Wind Solar System
Skywing-S400 400W 500Watt 24V/48V Hybrid Wind Solar System
Skywing-S600 600W 800Watt 24V/48V Hybrid Wind Solar System
FD3.0-1000 1000W 1500Watt 24V/48V Wind Turbine System
FD3.6-2000 2000W 3000Watt 120V Wind Turbine System
FD4.0-3000 3000W 4000Watt 120V Wind Turbine System
FD6.4-5000 5000W 6000Watt 240V Wind Turbine System
FD8.0-10000 10000W 12500Watt 240V Wind Turbine System
FD10.0-20000 20000W 25000Watt 240V Wind Turbine System
FD12.0-30000 30000W 36000Watt 240V Wind Turbine System



Vertical axis wind Generator 300W to 5KW



Model No Rated Power Peak Power Blade Quantity Blade Size Work Voltage
VAWT-300W 300W 350W 5pcs 1.12m 24V
VAWT-500W 500W 550W 7pcs 1.12m 24V
VAWT-1000W 1000W 1.5KW 5pcs 1.65m 24V/48V
VAWT-2000W 2000W 2.5KW 7pcs 1.65m 48V/96V
VAWT-3000W 3000W 4.5KW 9pcs 1.83m 220V
VAWT-5000W 5000W 6.5KW 9pcs 1.83m 220V



Wind Generator Project:

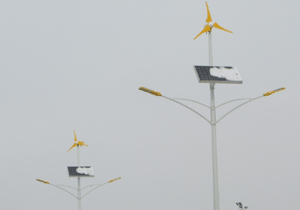

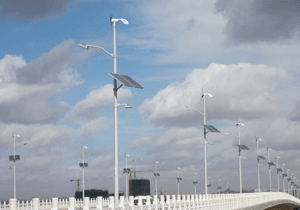

Wind turbine Generator                  Wind turbine Generator_1

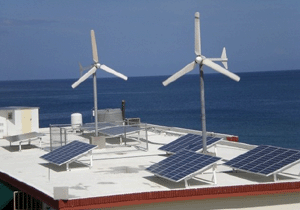

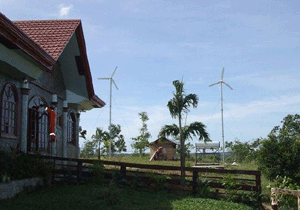

Wind turbine Generator_2                  Wind turbine Generator_3

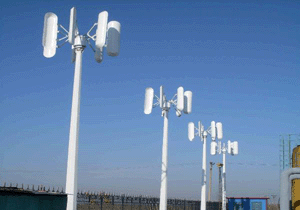

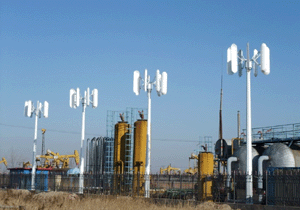

Wind turbine Generator_4                  Wind turbine Generator_5



Wind Generator Installation Manual:


300W AEOLUS Wind Turbine Generator User Manual
Skywing M300 wind turbine installation instruction manual
Skywing S Series 300W wind turbine installation instruction manual
Skywing S Series 400W wind turbine installation instruction manual
FD-series wind turbine installation instruction manual
E Series 1KW 2KW 3KW wind turbine installation instruction manual
E Series 5KW wind turbine installation instruction manual
GLB50KW wind turbine installation instruction manual
